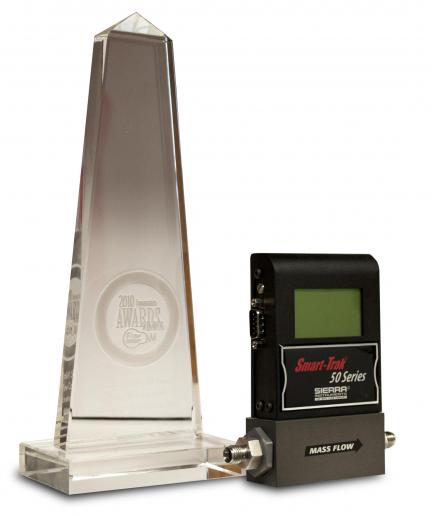

Winner of the Prestigious 2010 Flow Control Magazine Innovation Award!

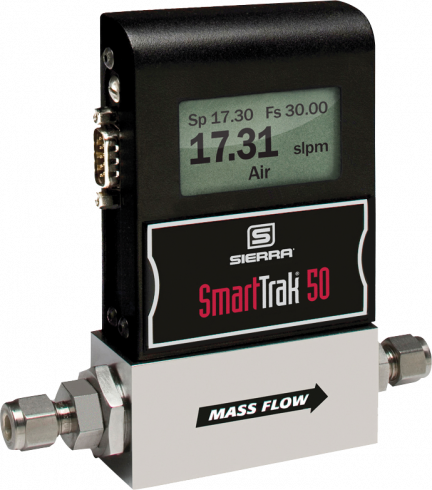

Sierra’s SmartTrak® 50 Series OEM Flow Controller has been honored by the readers of Flow Control Magazine with their annual Product Innovation Award for its advances in flow measurement technology. |
 |
What Makes the SmartTrak® 50 an Innovation Winner?
Sharing the same advanced core sensor technology as our award-winning SmartTrak 100, the new SmartTrak 50 is available at nearly half the price with expedited off-the-shelf delivery at no extra charge.
Technology
Advantages
- Stability: Sensor, LFE and valve technology field-proven for over a decade
- Simplicity: Easy setup, field calibrate without sending units back to factory
- Flexibility: Add communications, displays or future functionality as needed
- Economy: Competitive pricing and volume discounting
- Service: Free engineering for basic customization
- Support: For the life of your instrument ¬with 150 offices in 50 countries
Performance
- Accuracy: +/- 1.5% FS
- Repeatability: +/- 0.25% FS
- Materials: 316L SS or Aluminum
- Response Time: Fast 300ms
- Flow Range: 0-50 slpm (nlpm) range, one compact footprint
- Field Calibration: Field zero & span adjust
- Interface: Large local display or free user software
- Gas: All clean gases
- Approvals: CE
Improving on Existing Technology
In contrast to the many wetted parts of CMOS and MEMS flow sensors, Sierra uses its most advanced 316L stainless steel platinum-wound capillary sensor technology ensuring the very best mass flow control for nearly any clean gas. The sensor’s small diameter minimizes environmental effects.
The 50 Series has a flexible and powerful direct-acting control valve sets it apart from the competition by minimizing leak-by, while offering a 300 msec response time to setpoint changes at +/- 0.25% repeatability.
Another difference between the 50 Series and other flow controllers is its modular design that allows for upgrades and changes in communication. If you need to change the communication or add features such as a display, just add a new piggyback PCA.
More Info on the 50 Series
Case Study: "Bringing New Efficiencies to Solar Photovoltaic Manufacturing"
50 Series Product Page
Flow Control Winner's Announcement
