Software
The BG-3 software is a user friendly application that allows the engineer to work independently of a host system or interfaced with a host. The BG-3 software was designed by test cell engineers, for test cell engineers. The BG-3 software allows the knowledgeable engineer the diversity of testing any size or fueled engine for particulates, calibration and troubleshooting of the system.

The highly advanced BG-3 Cadet V12 software allows the user to collect particulate samples during test programs and allows remote control over the BG-3 by a host PC.  The BG-3 system and software is designed to allow novices users to easily collect accurate particulate samples, however it is recommended that users should have:

• Some experience in the operation of engine emissions measurement systems.
• Engine test stand and/or chassis test cell experience.
• A basic understanding of Microsoft Windows based computers and text processing.

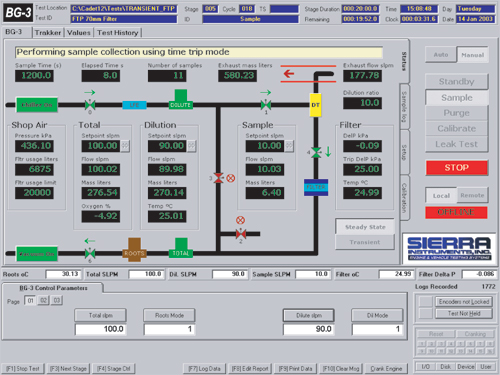

 Main Status Screen



The status screen displays the system layout and all of the real-time parameters before and throughout the test. The operations display is a useful tool for the operator as the test is being performed and after completion.


 Calibration Screen



The "Tracker" function is a tool that every engineer will find irreplaceable. This screen can be used by the engineer to track any of the functions (diluted mass flow, delta pressure, engine exhaust flow versus sample mass flow) or other immediate test functions for immediate reference or archival of data.


Tracker Screen



The engineer will find the calibration of the system very manageable and efficient. The fully automated calibration routine can be preformed at any time.
