Fiberglass Manufacturing Requires Precise Gas Ratio Control

QuadraTherm 640i Fills the Bill in Challenging Application

Fiberglass insulation manufacturing is almost akin to making cotton candy!  A mixture of silica and other components are melted and passed through a spinning extruder, then rapidly cooled with compressed air.

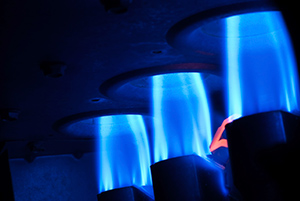

Industrial Burner

As older fiberglass manufacturing plants have demonstrated, manual control of air and natural gas flow to the burners used to melt the initial mix, results in unacceptable levels of rejected material, as well as excessive gas consumption.  Process engineers at a fiberglass manufacturing company in the Southwest were seeking methods to improve fiberglass quality, reduce raw material waste, and increase production capacity, all while keeping the measurement and control system as simple and economical as possible.

They were faced with some unique application challenges. They used existing piping of various diameters to carry the natural gas, combustion air, and compressed air used to cool and chop the fiberglass fibers.  The application also varied with the grade of fiberglass insulation being produced, so the manufacturing process required a great deal of flexibility on gas flow rate, temperature, and pressure. In combustion temperature control, the temperature is directly dependent on the ratio of natural gas to air.  They determined that improving this combustion efficiency was the best way to attain the quality and production benefits they were seeking, and turned to Sierra for a simple and economical solution.

Sierra’s Solution

Of course, the most elegant solution for this challenging application is a single flow meter that can provide a very accurate measurement under all these varying conditions. Sierra’s new QuadraTherm 640i filled the bill!

Sierra’s new QuadraTherm® 640i marks a breakthrough in thermal dispersion technology. With its sensor design advancements, coupled with a proprietary qTherm “Brain” capable of Dial-a-Gas and Dial-a-Pipe, the QuadraTherm 640i/780i Series achieves mass flow measurement accuracy of +/- 0.5% of reading (780i), ideal for the kind of tough industrial applications represented by the fiberglass manufacturing process.

Here’s what makes Sierra’s QuadraTherm 640i an ideal choice:
  • Offers a highly accurate measurement
    The 640i offers accuracy +/- 0.75% of reading over a flow range 0-60,000 sfpm (305 smps).  The 780i, with its in-line flow body, offers an even better accuracy of +/- 0.50% of reading.
  • Measures multiple gases (natural gas, air, compressed air)
    Dial-A-Gas™ allows users to change gas type in the field.  If your application parameters change, our  qTherm Gas Library contains 18 gases & mixtures (growing & improving).  Users can download new or improved gases and reprogram the meter in the field.
  • Measures high or low flow in various sized pipes with differing amounts of straight run
    Dial-A-Pipe™ allows you to change pipe sizes and types in the field.  If you just can’t find the straight run, the 780i in-line version with its unique flow conditioning plates reduces straight run requirements to as little as 3 upstream diameters.
  • Direct mass flow measurement over a wide range of temperatures and pressures
    The QuadraTherm Series measures mass flow without the need for temperature or pressure compensation. The qTherm brain addresses all changes in gas and outside temperature.  Even so, it is a true multivariable meter, allowing the user to measure mass flow rate, temperature and pressure (optional) through one process connection.
  • Simplicity and economy with one flow meter
    With Dial-a-Pipe and Dial-a-Gas, one basic meter can be configured to match all of the application conditions, allowing for uniform mounting, installation and wiring requirements.  The meter comes with a lifetime warranty on Sierra’s patented DrySense sensor, so drift and consequently recalibration is minimized.  Finally, the ValidCal user program may be used to confirm, adjust or troubleshoot all meter inputs and outputs in the field.
