How Thermal Mass Flow Meters Improve Biogas Recovery at Wastewater Plants
Wastewater treatment plants are quietly becoming energy producers. The anaerobic digestion process that breaks down organic solids generates biogas, a valuable mixture of methane and carbon dioxide, that can be captured and put to work. But capturing that energy reliably depends on one critical capability: accurate, consistent biogas flow measurement.
When flow data is imprecise, everything downstream suffers. Combined heat and power (CHP) systems run inefficiently. Flare control becomes reactive instead of proactive. Renewable energy potential goes unrealized, and regulatory compliance gets harder to demonstrate.
For wastewater operators, better flow measurement is a direct path to lower operating costs, improved energy recovery, and better environmental outcomes.
What Is Biogas and Why Is It Difficult to Measure?
Biogas is produced during anaerobic digestion, the process where bacteria break down organic material, primarily wastewater sludge, in the absence of oxygen. The result is a gas stream composed mostly of methane (typically 55–70%) and carbon dioxide, along with trace amounts of hydrogen sulfide, water vapor, and other compounds. The scale of production can be significant: a large wastewater treatment plant can generate roughly one million cubic feet of biogas per day.
That variable composition is one of the first challenges. Unlike natural gas or compressed air, biogas composition isn't fixed. It shifts with digester temperature, feed rate, and the biological activity of the system. A meter that can't accommodate changing gas mixtures will deliver inaccurate readings as conditions change.
Biogas also carries moisture. Saturated water vapor is nearly always present, and in some cases liquid droplets too. This creates a harsh measurement environment that can foul sensors and degrade instrument performance over time.
Finally, biogas flows at low pressure, often near atmospheric, and at flow rates that can vary significantly throughout the day. Together, these characteristics make biogas one of the more demanding gas measurement applications in industrial settings. Getting it right requires instrumentation designed specifically for these conditions.
Common Measurement Failures in Biogas Systems
- Condensing moisture leads to over reported gas production
- Low flow conditions during off-peak digestion fall below meter detection thresholds
- Limited straight run piping in retrofit plants introduces measurement uncertainty
- Changing gas composition making it difficult to get accurate measurements
These conditions require a flow technology that maintains accuracy in condensing moisture, low flow and low-pressure, and variable-composition gas streams without factory recalibration.
Why Thermal Mass Flow Meters Are the Right Technology for Biogas
Thermal mass flow meters measure gas flow by detecting the cooling effect of gas moving across a heated sensor. Crucially, they measure mass flow directly, not volumetric flow that must then be corrected for pressure and temperature. For biogas applications, this matters for several reasons:
- No pressure or temperature compensation required. Because thermal meters inherently measure mass flow directly, the temperature and pressure corrections that DP meters, vortex meters, and other volumetric technologies require are simply not needed. This eliminates a common source of measurement error at low pressures.
- Wide turndown range. Biogas flow rates can swing dramatically depending on digester activity and time of day. Thermal mass flow meters maintain accurate measurement across a wide range of flow rates without recalibration.
- Low pressure drop. Biogas systems operate at low pressures, and any restriction in the flow path is undesirable. Thermal meters impose minimal pressure drop on the process
- Sierra FlowTrak flow conditioners and installation strategies to mitigate condensing moisture effects and reduce straight pipe requirements.
- Rugged, long-term reliability. With no moving parts, thermal meters resist wear and are well-suited to the condensing moisture and contamination challenges of biogas streams.
- Accurate measurement against changing gas composition via field adjustment with Gas-Mix.
Thermal mass flow is the definitive technology for low-flow and low-pressure measurement.

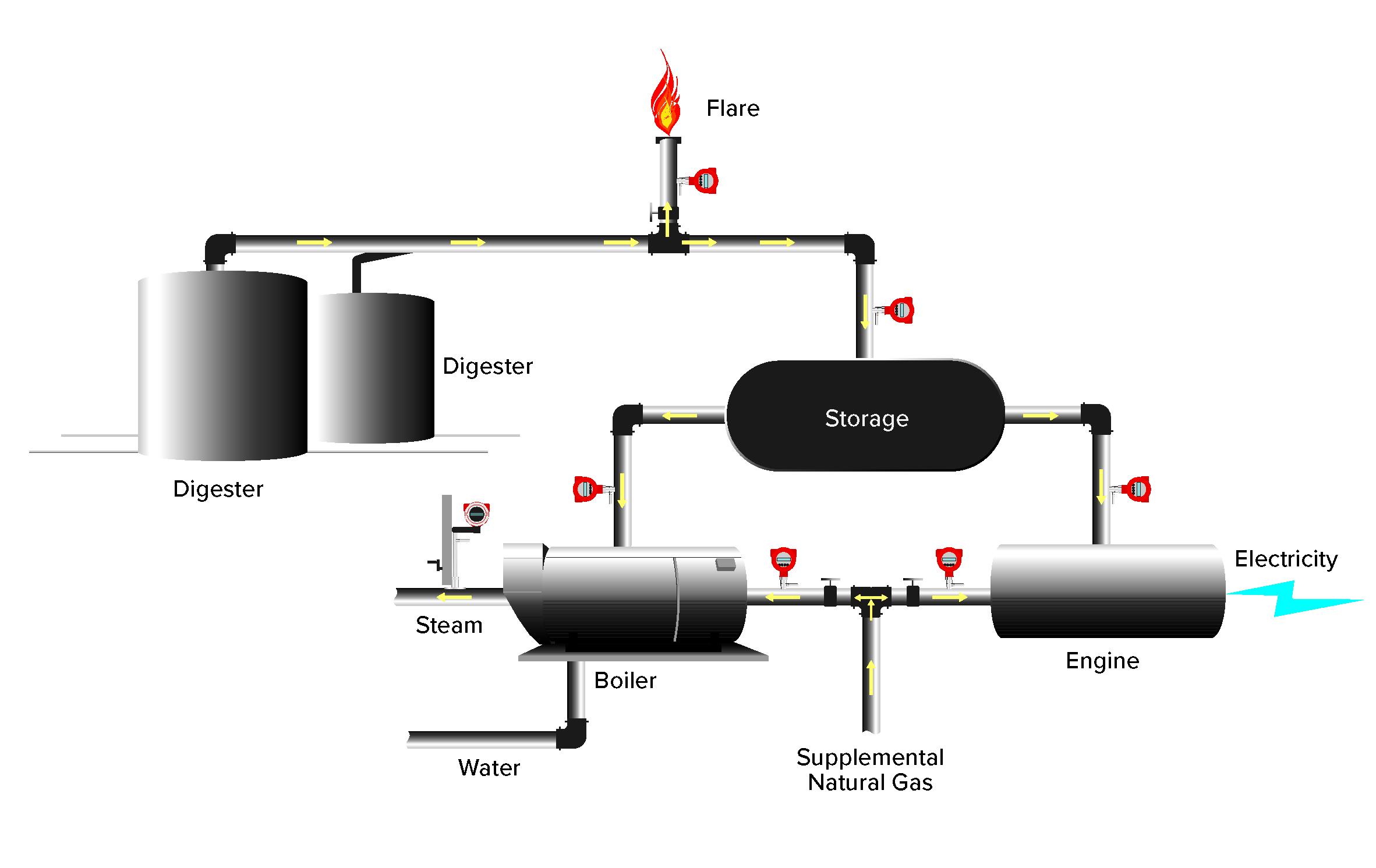

Where Biogas Flow Measurement Matters in a WWTP
In most wastewater treatment processes, there are numerous applications where the use of thermal mass flow meters for biogas flow measurement matters.
- Digester gas outlet: Measure total gas production to track digester efficiency and loading rates
- CHP engine fule line: Ensure consistent fuel delivery and optimize combustion efficiency to generate electricity for cogeneration
- Flare line: Measure excess gas for safety control and emissions reporting
- Gas store tank inlet/outlet: Balance production vs. consumption
Sierra's BioTrak Flow Meters: Built for Wastewater Digesters
Sierra's BioTrak 645S/745S and BioTrak 645i/745i product lines are engineered specifically for the demands of biogas measurement in wastewater treatment plants. Both lines use the same high-performance thermal mass flow sensor technology but are configured to serve different installation requirements.
BioTrak 645S/745S
The BioTrak 645S/745S meters are a cost-effective solution for applications where a 24VDC power supply and integral display are available.
The 645S is an insertion-style meter, ideal for larger pipes and ducts, while the 745S is an inline model with NPT or flange end connections for direct pipe installation.
When your installation is straightforward and budget efficiency is a priority, the 645S and 745S meters deliver proven BioTrak performance.

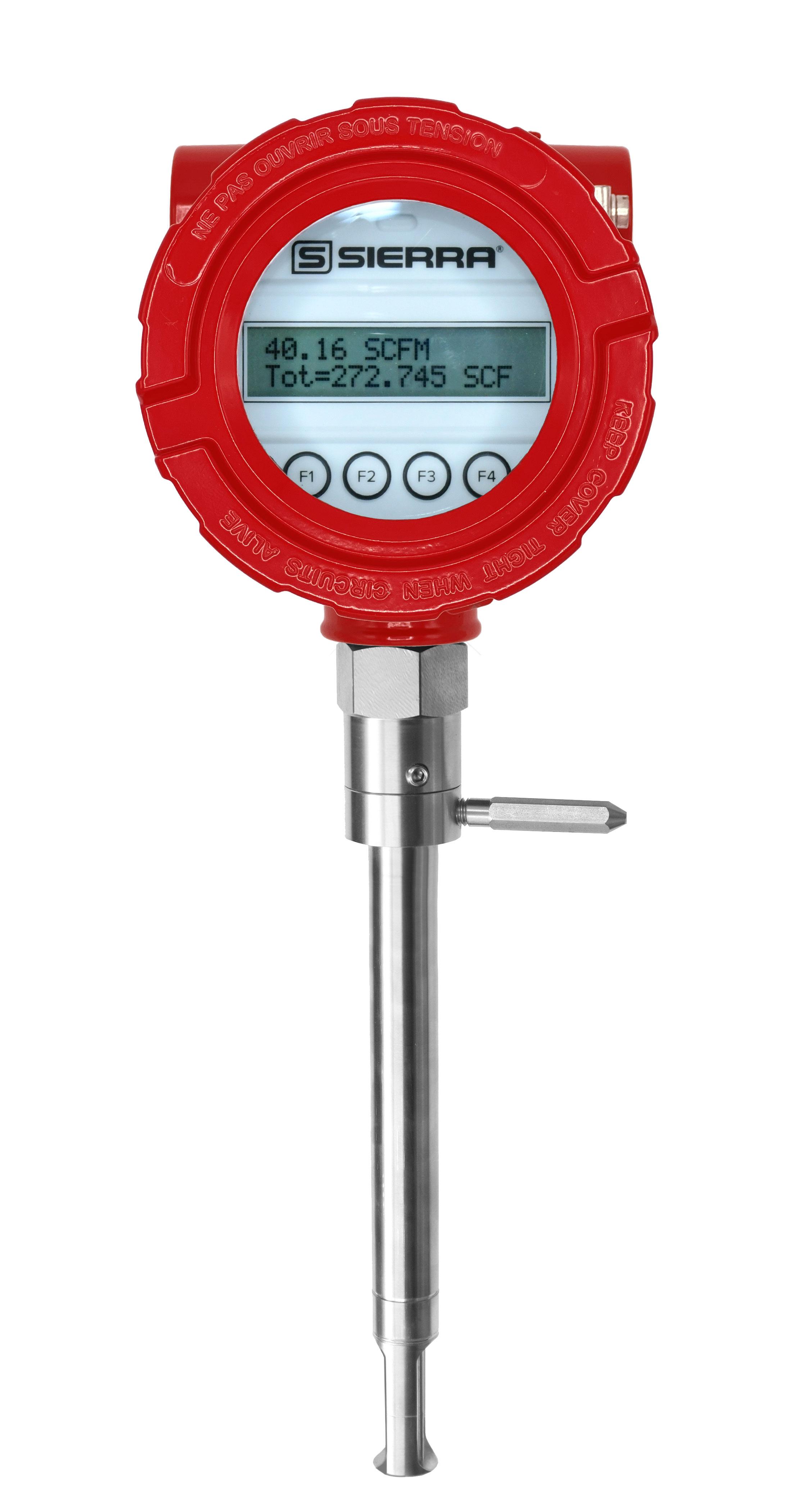

BioTrak 645i/745i
The BioTrak 645i/745i meters offer expanded configuration options that are especially relevant in water and wastewater environments. In addition to 24VDC input, the 645i supports 100–240VAC power, a common requirement in plant electrical systems.
They also offer both integral and remote display options, making it practical to mount the meter in a confined location while reading flow data from an accessible panel.
For the majority of WWTP installations, the 645i is the specification-ready choice.
Both versions of the BioTrak meters are fully compatible with Sierra's FlowTrak flow conditioners. In many wastewater plants, large pipe or duct sizes make it impractical to provide the 20–30 pipe diameters of straight run that flow measurement typically requires. FlowTrak conditioners reduce that requirement significantly, enabling accurate measurement in tighter installation spaces without costly pipe modifications.
Key Differentiators Worth Knowing
Beyond the core thermal mass flow advantages, the BioTrak line includes several features that set Sierra apart from competing instruments:
- GasMix software allows operators to select or change gas compositions directly in the field, with no factory recalibration needed. As digester composition shifts seasonally or with process changes, the meter adapts.
- DigiSense sensor technology delivers ±1% of reading accuracy, compared to ±2% of reading for comparable competitor products. In biogas energy accounting, that accuracy gap adds up.
- BioCal in-situ validation allows the meter to be validated without removing it from the process, eliminating costly downtime and the expense of sending instruments back for laboratory calibration.
- Fast response time of 0.8 seconds keeps pace with process changes, providing timely data to control systems.
- Build America, Buy America (BABA) compliance is available, an important consideration for public utility projects with domestic manufacturing requirements.
How Better Biogas Measurement Translates to Better Plant Performance
Accurate flow data from a BioTrak meter drives tangible improvements across multiple areas of plant operation.
Optimizing CHP System Performance
Combined heat and power systems use biogas to generate electricity and heat that can power the treatment plant itself. The efficiency of a CHP engine depends on a consistent, accurately metered fuel supply. With precise flow measurement, plant operators can optimize fuel-to-air ratios, detect shortfalls before they affect engine performance, and track exactly how much energy the digester is producing. Better data means more efficient electricity generation and fewer unplanned outages.
Improving Flare Control
Not all biogas can be used immediately. Excess biogas is typically sent to a flare, where methane is combusted into carbon dioxide, a far less potent greenhouse gas. Accurate flow measurement of biogas going to the flare is essential for two reasons: safe combustion control, and verifiable emissions reporting. Without reliable measurement, flare operations run on guesswork, creating both safety risks and compliance gaps.
Maximizing Renewable Energy Capture
Every cubic foot of biogas that is accurately measured and recovered is renewable energy that offsets natural gas or grid electricity purchases. Plants that put biogas to work in boilers, CHP engines, or fuel cells can realize energy savings of approximately $100,000 per year. Over a year, the difference between marginal and precise flow measurement, even a few percentage points, can represent significant cost savings and a meaningfully larger renewable energy contribution. Accurate metering also supports the data needed for renewable energy credits and carbon reporting.
Monitoring Digester Process Health
Biogas flow rate is a real-time indicator of digester biological activity. Unexpected drops in flow can signal temperature fluctuations, organic loading issues, or other process problems before they escalate. Sierra flow meters give operators an early-warning signal embedded directly in their energy monitoring data.
Ensuring Safety and Regulatory Compliance
Methane is a flammable gas, and biogas systems require careful monitoring to maintain safe operating conditions. Accurate flow measurement supports leak detection and safety interlocks. It also provides the verified flow data needed for greenhouse gas emissions reporting under state and federal regulatory frameworks, increasingly important as compliance requirements for municipal utilities tighten.
Precision Measurement, Better Biogas Utilization
Biogas recovery at wastewater treatment plants is both an energy opportunity and an operational responsibility. Getting the most from that resource, and managing it safely and compliantly, depends on accurate, reliable flow measurement at every point in the biogas stream.
Sierra Instruments brings more than 50 years of flow measurement expertise to water and wastewater applications. The BioTrak thermal mass flow meter line is purpose-built for the challenges of digester biogas: variable composition, moisture, low pressure, and wide-ranging flow rates. With field-configurable gas settings, best-in-class accuracy, in-situ validation, and flexible installation options, BioTrak meters give wastewater operators the data they need to maximize energy recovery, reduce costs, and meet compliance requirements with confidence.
To learn more about Sierra's complete lineup of wastewater flow measurement solutions, explore the full product range below.
Explore Wastewater Flow Meters
FAQs
What is the best flow meter for biogas in wastewater treatment plants?
The best flow meter for biogas in wastewater treatment plants is a thermal mass flow meter, such as Sierra’s BioTrak 645i. It measures mass flow directly without separate pressure or temperature compensation, handles low-pressure and variable-flow biogas applications, and offers field-configurable gas settings for changing digester gas compositions. For most WWTP installations, the BioTrak 645i is the specification-ready choice, while the 745i is a strong option when an inline meter configuration is required.
How do you measure low-pressure biogas flow accurately?
Thermal mass flow is the definitive technology for low-flow and low-pressure measurement.
How does moisture affect biogas flow measurement?
Install flow conditioning plates upstream of the flow meter to create a rain shadow and insert the flow meter probe from the underside of the pipe.
How do you deal with changing gas compositions?
Use a Sierra 645i /745i thermal flow meter with gas mix. Other technologies require factory re-calibration to update gas compositions.
