How to Select the Right Gas Flow Meter for Your Application

Selecting the right gas flow meter for your application is essential for accurate and reliable results. However, determining the ideal fit can be challenging due to a range of factors that can impact performance.

This guide explains how to compare key technologies, identify common selection mistakes, and ultimately choose the best gas flow meter based on application needs.

Choosing the Right Gas Flow Meter: Understanding Your Application's Needs

Selecting a gas flow meter requires thorough assessment of your application. Start with a clear understanding of your process. Consider more than just flow rate and gas type when selecting a gas flow meter. Many parameters directly affect meter selection and performance, including:

• Flow range and turndown: Define minimum, normal, and maximum flow rates. Wide turndown favors thermal mass meters.
• Accuracy: Your meter must deliver the accuracy your application demands.
• Gas Type and Operating Conditions: Consider the gas type, temperature, pressure, and environmental conditions the meter will encounter.
• Gas composition: Pure gas versus mixed gas impacts calibration and sensor selection.
• Viscosity and Corrosiveness: Properties of the gas such as these can influence flow characteristics and require meters with special materials.
• Impurities: Dirty or wet gas streams require robust sensor designs to resist clogging or wear and reduce the needs for maintenance.
• Installation Environment: Space constraints and installation conditions, including existing piping configurations, are crucial in determining the appropriate meter type.
• Cost Considerations: Evaluate the total cost of ownership, which encompasses purchase, installation, calibration, and maintenance expenses.
• Outputs and Controls: Determine how flow meter data will be transmitted, integrated, and stored using analog and digital communication outputs like 4-20mA, Modbus, HART, etc.

Together, these factors determine performance, service life, and long-term reliability. Mismatches in any area are a common cause inaccurate or unreliable results.

Gas Flow Meters: Matching Technology to Your Application Needs

Different technologies solve different problems. Choosing the right one is more important than selecting a specific product. Sierra Instruments offers a diverse range of gas flow meters to meet the needs of various industrial and scientific applications.

Here's how our meters align with common applications and the benefits they provide:

Mass Flow Controllers and Mass Flow Meters

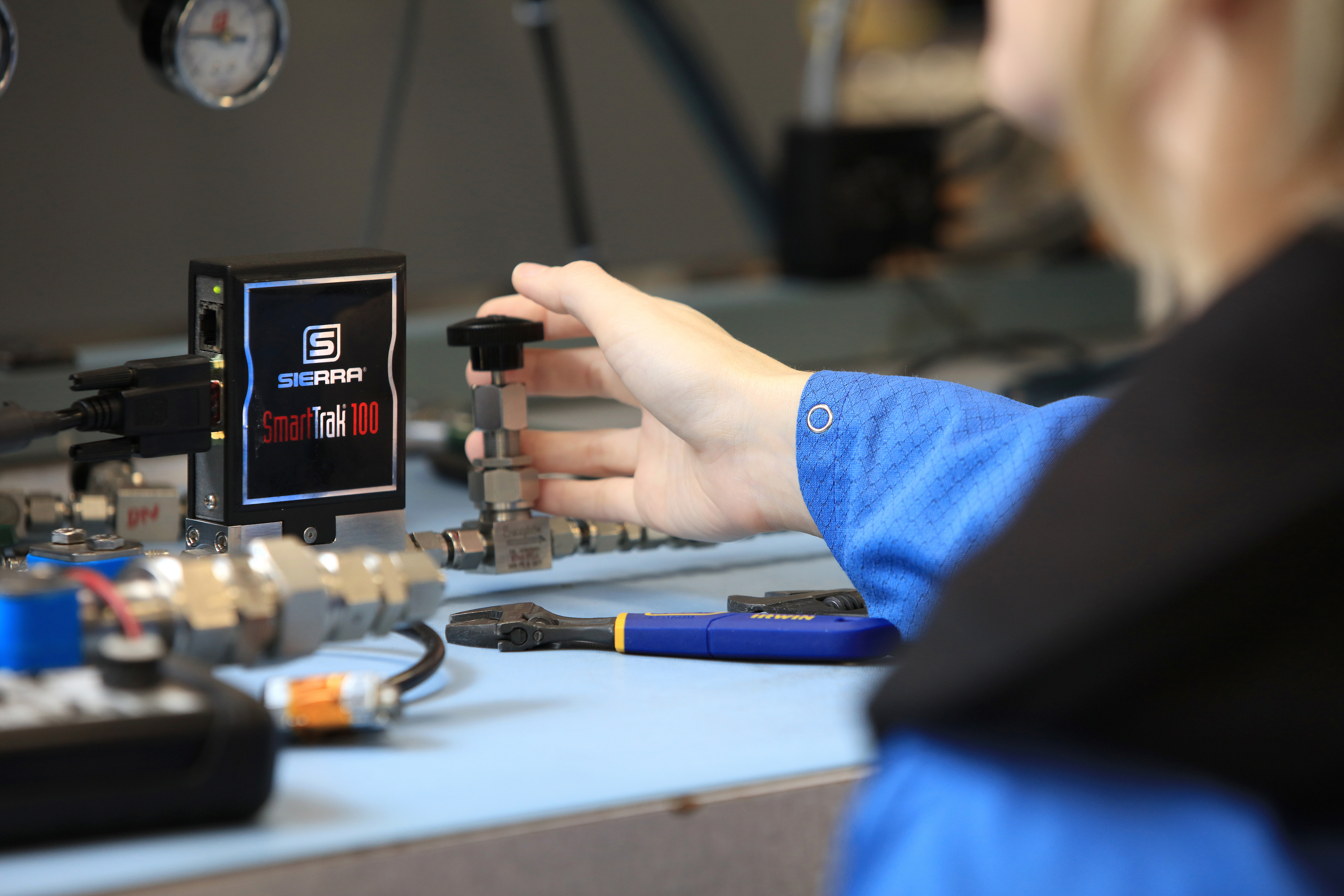

• Models: SmartTrak® 100, RedySmart™, and RedyCompact™
• Benefits: Direct mass flow measurement with high accuracy, multi-gas capability, digital communication options, and robust sensors for long-term stability.
• Applications: Laboratory research, gas mixing, semiconductor processes, and OEM systems requiring precise gas flow control.

Thermal Mass Flow Meters (Industrial Thermal)

• Models: QuadraTherm® 640i / QuadraTherm® 780i, TM100, TM500, SteelMass™ 640S, and FastFlo™ 620S
• Benefits: Accurately measure gas mass flow rate with minimal pressure drop, high turndown, gas mixing, suitable for variable flow rates and harsh conditions.
• Applications: Emissions monitoring, combustion air flow, sub-metering of natural gas, air flow measurement, compressed air monitoring to optimize leak detection, pharmaceuticals, and food & beverage processing.

Vortex Flow Meters

• Models: InnovaMass® 240S Inline and InnovaMass^® 241S Insertion
• Benefits: Measures gas, liquid, and steam. Durable construction with no moving parts can measure five process variables with one process connection: mass flow rate, volumetric flow rate, density, pressure, and temperature
• Applications: Steam flow measurement, volumetric water flow, industrial boiler efficiency, compressed air, and energy management.

Ultrasonic Flow Meters

• Models: InnovaSonic^® 203 and InnovaSonic^® 210
• Benefits: Non-intrusive flow measurement with clamp-on technology, no process shutdown, ease of installation, and cost savings.
• Applications: Large pipe diameters, water and wastewater treatment, and retrofit installations.

Cost Considerations: It's Not Just About the Price Tag

Total cost of ownership goes beyond the initial purchase price and encompasses all costs associated with the gas flow meter's life cycle. Considering a range of factors ensures that you select a flow meter that not only fits your budget but also efficiently serves your long-term needs.

Installation Costs

• Complex piping modifications may be necessary, depending on the meter selected.
• Specialized labor might be required for installation, raising initial costs.
• Installation environment and space constraints can influence the type and model of the flow meter you choose.

Careful consideration of these factors can prevent costly maintenance after installation.

Calibration Costs

• Calibration frequency and the associated costs depend on the type of meter and its intended application.
• Some meters have user-friendly features allowing for easy field verifications, potentially reducing long-term expenses.
• Evaluating the balance between a meter's accuracy and the cost of maintaining that accuracy over time is important.

Maintenance Costs

• Maintenance requirements vary with the type of meter; some may require more frequent service than others.
• Consider the potential for wear and tear based on the operating conditions and the robustness of the flow meter design.
• Meters with fewer moving parts or more durable materials may save maintenance costs.

Long-term Value vs. Upfront Costs

• The best investment is not always the one with the lowest initial price but rather the most favorable balance of upfront costs against long-term benefits.
• A meter with higher capabilities and initial cost might offer more accurate data and require less frequent maintenance.
• A more economical meter might suffice for applications requiring less stringent accuracy.

Real-World Examples: Gas Flow Meters in Action

Let's look at a few common applications to illustrate how meter selection aligns with specific needs:

Example 1: Compressed Air Monitoring

• Preferred Meter Types: Thermal or vortex flow meters are ideal due to their accuracy and ability to handle compressed air's often fluctuating flow rates.
• Why: These technologies provide the precision needed for optimizing compressor efficiency and identifying leaks, leading to cost savings.

Compressed air systems can have unique pressure conditions and fluctuations. Working with a flow expert helps determine if a standard meter is sufficient or if a specialized design can improve readings and reduce long-term costs.

Example 2: Methane Measurement

• Preferred Meter Type: A robust thermal mass flow meter with suitable materials is often recommended.
• Why: This provides accurate readings in this potentially challenging application, where the gas might be contaminated or under varying pressure conditions.

Methane measurement applications can vary greatly – from clean gas pipelines to potentially contaminated landfill gasses. Selecting a durable meter with suitable materials is crucial for reliable, long-term performance.

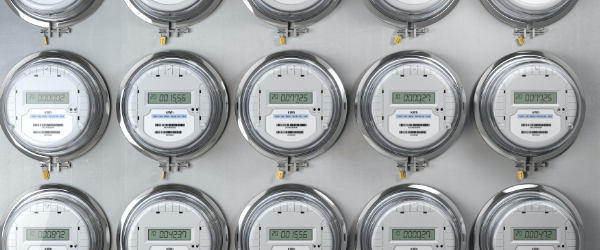

Example 3: Natural Gas Submetering

• Preferred Meter Types: Depending on the scale and accuracy needs, thermal or vortex technologies are typically most suitable
• Why: Submetering natural gas often requires balancing measurement accuracy with cost considerations. Determining the necessary level of precision will guide whether a basic, economical meter will suffice or if investing in a higher-accuracy model is needed for billing or other sensitive measurements

Example 4: Laboratory / Gas Mixing

• Preferred Meter Types: Mass Flow Controllers
• Why: Provides precision gas flow control and repeatability, accurate flow control at low flows, multigas capability


Avoiding Common Mistakes in Gas Flow Meter Selection

 A frequently encountered mistake when selecting a gas flow meter is the misalignment between the meter's capabilities and the application's specific requirements. This occurs when end users:

• Rely solely on product datasheets, not real-world operating conditions
• Ignore parameters outlined above
• Select technology based on preference or familiarity instead of application fit
• Over specify accuracy, driving unnecessary cost
• Underestimate or ignore installation constraints (straight run requirements)
• Disregard cost considerations noted above
• Focus on price only and not total cost of ownership

Working with experienced application engineers, like the team at Sierra, helps you avoid common selection pitfalls and ensure long-term reliability.

How Sierra Can Help – The Sierra Difference

Sierra Instruments understands how challenging selecting the right gas flow meter or controller can be. We combine over 50 years of extensive process knowledge with practical product experience to recommend a meter that matches your application's unique requirements, ensuring optimal functionality and performance.

With Sierra you can be certain of:

• Precise and reliable flow measurement instruments you can trust
• Accurate flow data to maximize your process efficiency
• Broad solutions across thermal, vortex, ultrasonic, and MFC technologies
• Knowledgeable flow experts to support you through the lifetime of your measurement

Explore Sierra Instruments’ gas flow solutions or speak with a flow expert to ensure the best fit for your application.
