Understanding Flow Profile for Real-World Flow Meter Accuracy

In theory, gas flow measurement is straightforward. In practice, it rarely is. Industrial gas almost never travels through long, straight, unobstructed pipe runs. This makes accurate flow measurement a constant challenge in real facilities. Instead, gas moves through piping systems with elbows, valves, expansions, reductions, and other equipment that distort the velocity profile.

Flow profile, the distribution of gas velocity across the pipe diameter, is one of the most overlooked contributors to flow measurement error. Understanding how flow profiles form and how to correct them is essential for anyone responsible for gas measurement accuracy, energy balance, or emissions reporting. This article details what causes distorted flow profiles, why traditional straight‑run requirements often fall short in real‑world piping, and how flow conditioning provides a practical way to improve accuracy in installations with space constraints.

Why Flow Profile Matters

A point-velocity or single-point flow meter does not measure every location across the pipe. It measures flow at one point and assumes that point represents the broader velocity distribution, which is why the shape of the flow profile directly affects accuracy.

With enough straight run, flow settles into a more predictable profile. In the field, however, piping features, process conditions, and installed equipment like instrumentation and valves can create swirl, eddies, and uneven velocity zones that make a single-point reading less representative of the whole pipe.

What causes a distorted flow?

The most common causes of distorted flow are interruptions in straight pipe. Examples of straight-run interruptions in piping systems are bends (elbows, etc.), tees, expansions, reductions, valves, and in-line instrumentation. A system designed with multiple interruptions in nearby series can lead to even more extreme distortions in the flow profile.

A flow meter installed too close to straight-run disturbances may be functioning correctly but measuring inaccurately because the flow profile is skewed. It is best to install flow meters after long straight runs of pipe, where flows will develop into more predictable profiles.

Why straight run is hard to achieve

In practice, installing flow meters downstream of long straight-runs isn’t always possible. Sometimes, the best or only available measurement point is constrained by limited straight-runs. And the larger your pipe size is, the less likely you are to have sufficient straight pipe surrounding the point of measurement.

When working with limited straight-run and unpredictable flow profiles, one solution is to perform a traverse to map the velocity profile in the pipe and identify the best available measurement point for the flow sensor. However, traverse testing is expensive and may ultimately indicate that a single-point measurement isn’t viable for the given flow profile at all. The alternative and more cost-effective solution is to use a flow conditioner upstream of the meter.

How flow conditioning improves flow meter accuracy

When ideal straight‑run conditions are not available—and in most facilities they are not—flow conditioning offers a practical way to improve accuracy without major piping changes. Rather than relying on long lengths of pipe that may not fit the layout, a properly selected flow conditioner reshapes the gas stream, so the meter sees a more stable and predictable velocity profile.

Flow conditioning works by intentionally altering the gas velocity profile into a repeatable state of turbulence before it reaches the flow sensor. When calibrated for use with flow conditioners, flow meters will measure more accurately in challenging installations with limited straight-runs.

Flow Profile Types

Flow meter calibration assumes a known profile, so understanding laminar versus turbulent behavior matters for accuracy. This information helps the manufacturer calibrate the meter appropriately for how the gas moves through piping.

• With enough straight run, a more laminar Flow profile can be expected.
  • The velocity profile looks “bullet‑shaped,” with the highest gas velocity at the centerline of the pipe.
• Without enough straight run, flow is typically turbulent.
  • Turbulent flow is chaotic but can still be predictable and accounted for when using piping disturbances that are understood (like flow conditioners).

Flow Conditioners introduce turbulence on purpose to create a flow profile that is “flat” on average.

What Flow Conditioning Does (and Why It Works)

A properly designed flow conditioner:

• Removes swirl caused by upstream elbows and fittings
• Reduces velocity asymmetry across the pipe diameter
• Creates a repeatable “flat” flow profile
• Minimizes sensitivity to upstream disturbances

Flow meters must be calibrated for use with flow conditioners. This allows the flow meter to interact with a flow profile in the field that corresponds to the calibration conditions, without requiring long runs of straight pipe.

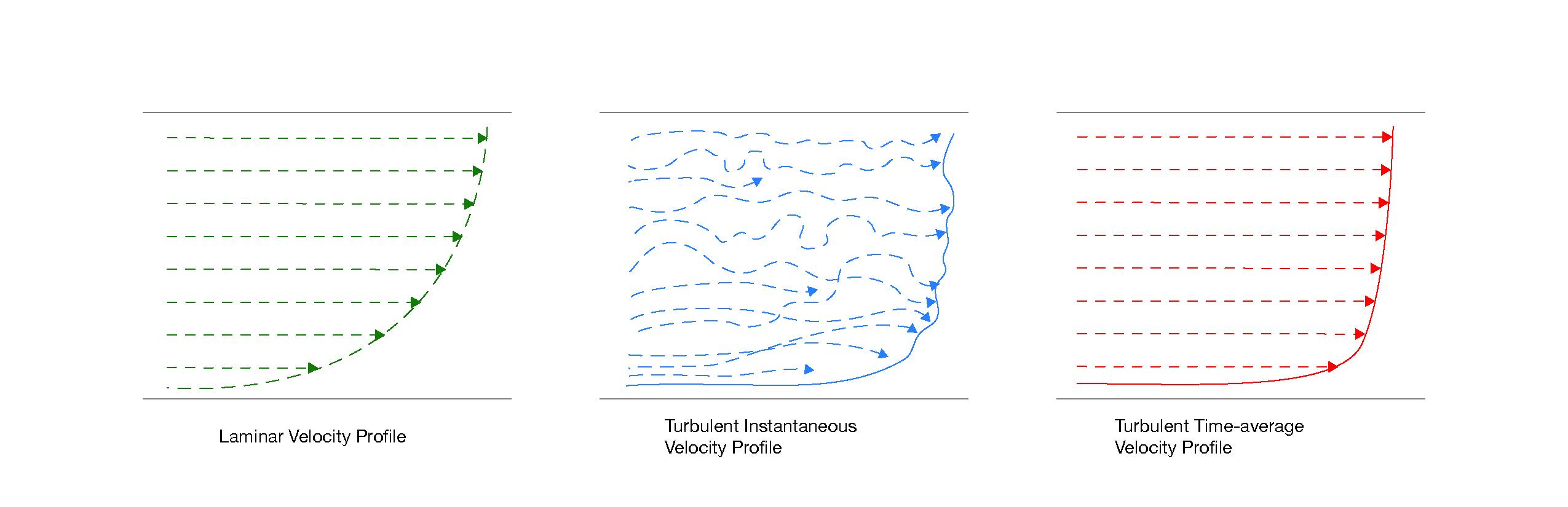

Figure 1: This illustration shows how upstream disturbances create uneven velocity profiles and how flow conditioning reshapes the flow into a more uniform, time‑averaged velocity distribution suitable for accurate measurement.

FlowTrak™ Flow Conditioning Plates: Built for Real-World Piping

Sierra Instruments’ FlowTrak™ Flow Conditioning Plates use single-plate and dual-plate designs engineered specifically for industrial gas applications. These conditioners break up swirl and directional bias in the flow, conditioning the gas stream to produce a stable, flattened velocity profile.

The benefits of using flow conditioners from Sierra include:

• The shortest straight-run requirements in the industry, reducing upstream straight pipe to 3 diameters or less
• Integration into flow applications with minimal changes to existing piping
• Convenience and cost savings to install any gas flow meter in applications with challenging flow profiles
• In wet gas applications, provide a “rain shadow” upstream of the flow meter that draws condensing liquids to the wall of the pipe.

By creating a more uniform velocity profile before the meter, FlowTrak conditioners help improve measurement confidence in installations where adding straight pipe is not feasible or cost‑effective.

Flow Conditioning Across Meter Technologies

Flow conditioning can improve accuracy for:

• Inline-type thermal mass flow meters
• Insertion-type thermal mass flow meters
• Other gas flow measurement technologies that are sensitive to velocity profile and installation effects

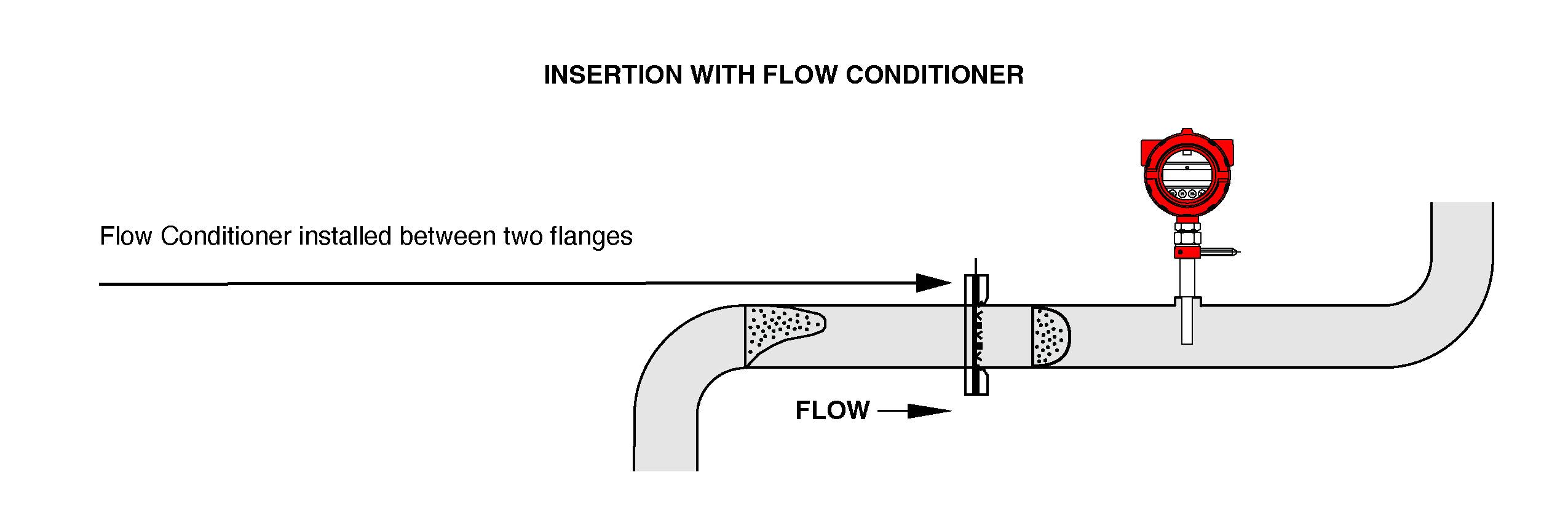

In some cases, conditioners are integrated directly into the meter’s inline flow body. In others, standalone FlowTrak conditioners are installed upstream of an insertion meter to stabilize the velocity profile before the gas reaches the meter. This gives engineers flexibility to address profile distortion in both new systems and retrofit projects without redesigning the entire piping run.

If limited straight run, elbows, or other piping constraints are making accurate gas flow measurement difficult, flow conditioning can help. Explore Sierra’s FlowTrak Flow Conditioning Plates to see how a more uniform velocity profile can improve flow meter performance in your real‑world piping installations.

Contact Sierra’s applications engineers to discuss flow conditioning in your application and determine the best fit between dual-plate, single-plate, and inline conditioner options.
