Innova-Sonic 205 Insertion Ulstrasonic Flow Meter

Insertion Ultrasonic Flowmeters and Readers

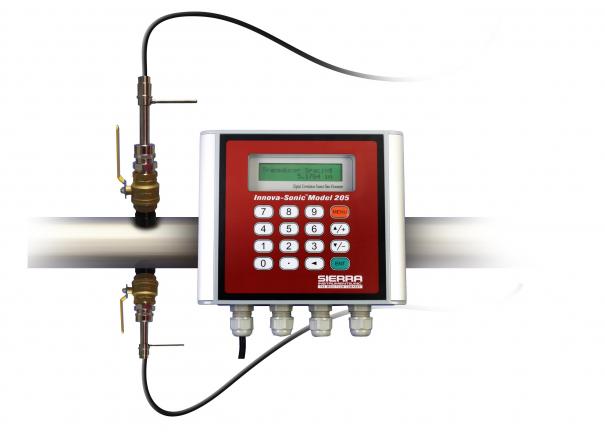

Innova-Sonic™ Model 205  Insertion Ultrasonic liquid  flow meters accurately measure liquid flow by using insertion transducers. These transducers can be used on pipes that range in size from 2-inch to 400-inches (50mm to 10000mm).

High signal strength is achieved by using insertion transducers, which are designed to solve application problems where clamp-on transducers do not work due to difficult pipe conditions. Pipe wall, pipe liner, and pipe wall deposits will not affect the performance of the transducer.

» Ultrasonic Transit-Time Liquid Flow Meter Selection Chart







Product Overview Product Overview Product Overview

Live Ultrasonic Flow Meter Insertion Keeps the Flow Going

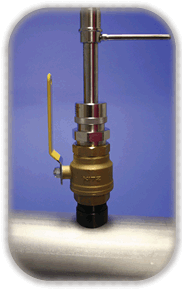

By using a hot-tap machine, insertion transducers can be installed without the need to shut down the flow of air, water, or any other liquid. The double O-ring seal prevents leakage during the insertion, extraction, and operation in the open channel under normal operating process pressures. Live insertion does not disturb the flow process to get a meter reading, so the pipe can stay live and the liquid can continue flowing.

Unique Product Features of our Ultrasonic Flowmeters

• Reads and detects the volumetric flow rate of most liquids
• Hot-tap installation
• Double O-ring seal
• Live insertion & extraction
• Easy meter installation, insertion sensors do not have to be inserted at an angle
• Wide operating temperature range -40F to +300F
(-40C to 150C)
• Measuring accuracy +/-0.5%
• Wide bi-directional flow range of 0.0 to 40 fps liquids (0 to 12 mps)
• Reads a wide range of pipe sizes 2-400" (50mm-10000mm)
• Daily, monthly, and yearly totalized flow tracking: up to 5 years may be viewed
• Internally configured batch controller makes batch control convenient and accurate
