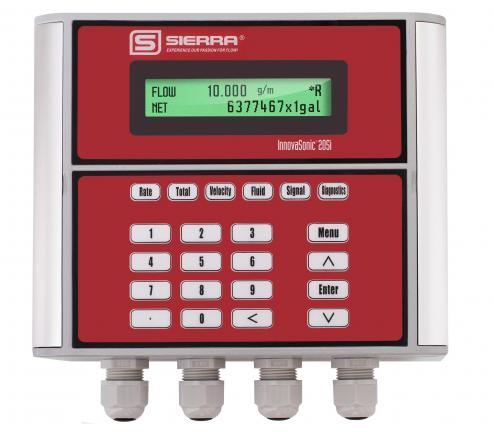

Innova-Sonic ^® Model 205

Transit -Time Ultrasonic Liquid Flow Meter

Innova-Sonic® Model 205 ultrasonic liquid flow meter is a state-of-the-art universal transit time ultrasonic liquid flow meter incorporating the latest developments in digital signal processing. Sophisticated ultrasonic sensor technology coupled with powerful transducers deliver highly accurate flow measurements for liquids in full pipes. While principally designed for measuring clean liquid applications, the device is tolerant of liquids with a small quantity of air bubbles or suspended solids common in most industrial applications.

The Model 205 offers low power consumption, high reliability, and outstanding applicability at an economical price. This ultrasonic measure features an easy to read display and clear, user-friendly menu selections make using the instrument simple and convenient. This ultrasonic flow meter can be configured via keypad without any additional programming device, is packaged in a die cast NEMA 4X (IP65) housing, and like the Innova-Sonic™ Portable Model 210, is available in your choice of non-invasive clamp-on or insertion transducer configurations.

The Model 205 features a self-contained 4-20 mA current loop signal output for instantaneous flow, as well as two independent temperature inputs to measure thermal energy. This ultrasonic measure also features a 7 digit alpha-numeric display, parallel operation of positive, negative and net flow totalizers (with user-selectable scale factors) and configurable pulse and frequency outputs (transmitted via relay and open collector) for totalized flow. An optional data logging feature (SD card) is also available to capture ultrasonic sensor measurement data.
