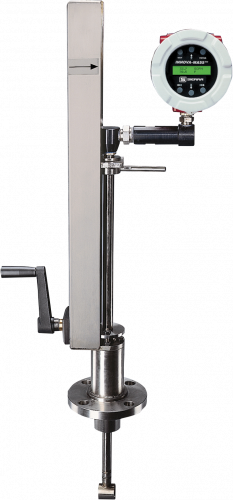

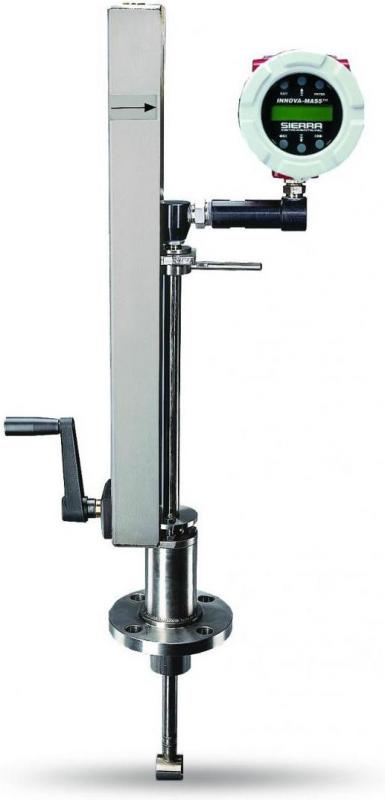

Innova-Flo® Model 241V (Volumetric Vortex Meter)

In-line Volumetric Vortex Meter

Model 241V Innova-Flo provides a direct reading of volumetric flow for liquids, steam or constant density gases. The unique insertion design may be used in process piping from 2-inches up to 72-inches. Product accuracy is ± 1.2% of rate for liquids and 1.5% of rate for gases and steam over a 30:1 range.  The Model 221 is hazardous area approved for FM, CSA, ATEX and CE.

The Model 240V allows for a constant density input to calculate mass flow for incompressible fluids or constant density gas or steam flow.  The product features loop power, simple installation with ANSI flanges and a 4-20 loop output.  A separate totalizer pulse output is also standard.  Smart electronics provides access to all measured variables and programming menus.







Product OverviewDownloadsApplication StoriesImages & Video

The sophisticated on-board flow computer also incorporates AGA-8 algorithms for natural gas measurement to reducing billing and contract disputes. Smart electronics provide access to all measured variables and programming menus, and permit field-configuration directly from the control panel or workstation via RS485, MODBUS or HART protocols.

Product accuracy is ± 1.5% of rate for liquids and 2% of rate for gases and steam over a 30:1 range.  The Model 241 is hazardous area approved for FM, CSA, and CE.

Unique Product Features
• Volumetric flow monitoring of most gases, liquids and steam
• Rangeable down to Reynold's number of 5000
• In-line sizes from 2 " to 72 "
• 1.2% rate accuracy (liquids) or 1.5% for gases over a 30:1 turndown
• Fully field configurable
• Loop powered with 4-20ma outpute
