Overview

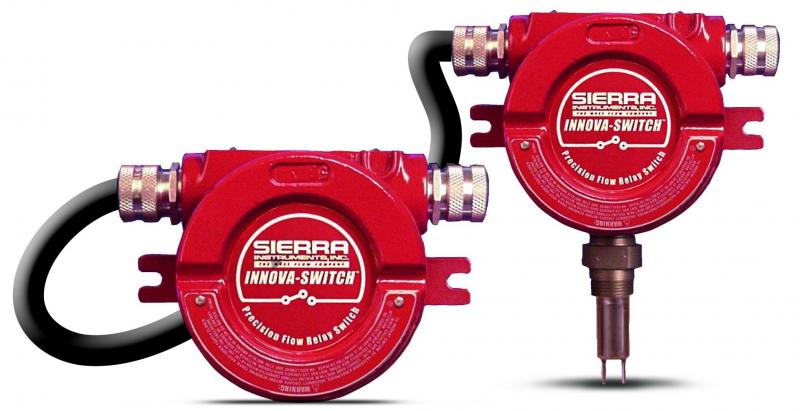

Designed for medium and high temperature applications. Medium Temperature to 300C (572F) ; High temperature to 485C (850F). Optional remote electronics for use in medium and Hi T environments. Switches on a flow/no flow condition in both gases and liquids. Flow Switch range of 0.01 to 5 fps in liquids and 0.1 to 500 fps gases. Response Time of 0.5 to 10 seconds (media dependent). CE, CENELEC and CSA approvals.
Product Benefits
| Unique Product Features |
| • Mass flow Switch for the detection of the mass flow rate of liquids and gases • Range of 0.01 to 5 fps in liquids and 0.1 to 500 fps gases • Fast response time of 0.5 to 10 seconds (media dependent) • Wide operating temperature range of Medium T to 300C (572F) optional Hi T to 485C (850F) • Electronics: -40C to 60C (-40F to 140F). Optional remote electronics for use in medium and Hi T environments • Operating Pressure: to 3000 psia (207 bar) • CE, CENELEC and CSA approval • Repeatability: +/- 1% of set point (Flow) or 1/32" (0.8mm) Level • Stability: Drift <0.5% from calibrated set point over a range of +/-50F • Temperature compensated through entire range • Enclosure: Explosion Proof; NEMA 3, 4X, 7, 9. CSA, FM, UL, CENELEC and EECS approved • Process Connection: 0.75" MNPT standard. 0.5" and larger MNPT and various other process connections such as sanitary and flanges optional • Insertion Length: 2.0" standard. 0.5" or greater optional • Input Power: 115 VAC, 50/60Hz standard. 230 VAC, 50/60Hz optional, 24VDC optional. 3.1 Watt maximum • Output: 5A. 250 VAC. DPDT with fail safe capability |
Documents & Downloads
Datasheets(1) | |||
| File Title | Version | Release Date | |
|---|---|---|---|
High Temp Flow Switch Technical Datasheet | F | 11/28/2023 | |
Manuals(1) | |||
| File Title | Version | Release Date | |
InnovaSwitch 615 Series Instruction Manual | H | 11/22/2019 | |
Certificates(1) | |||
| File Title | Version | Release Date | |
| ISO 9001:2015 | 2022 | 01/10/2022 | |
Additional Documentation(5) | |||
| File Title | Version | Release Date | |
| Sierra Clean Energy Guide | V1 | 01/28/2011 | |
Full Line Product Offering | V4 | 08/03/2023 | |
| Terms and Conditions | 1.0 | 11/01/2010 | |
| Service Brochure | 2.0 | 04/06/2015 | |
| Warranty Statement | 2.0 | 04/01/2015 | |
