InnovaMass® 240V (Volumetric Vortex Meter)

In-line Volumetric Vortex Meter

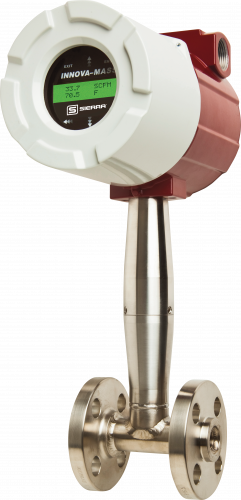

Sierra's Model 240V  In-line Volumetric Vortex Meter provides a direct reading of volumetric flow for liquids, steam or constant density gases. Product accuracy is ± 1% of rate for liquids and 0.7% of rate for gases and steam over a 30:1 range.  The Model 220 is hazardous area approved for FM, CSA, ATEX and CE and available in flow body sizes from 1/4-inch up to 8-inches.

The Model 240V allows for a constant density input to calculate mass flow for incompressible fluids or constant density gas or steam flow.  The product features loop power, simple installation with ANSI flanges and a 4-20 loop output.  A separate totalizer pulse output is also standard. Smart electronics provides access to all measured variables and programming menus.

Our digital communications solutions offer engineers and systems integrators, full industrial system integration and networking capability with Sierra's vortex flow meters.  Digital communications solutions include: BACnet, HART, and Modbus RTU. This flexibility of communication features offers turnkey solutions for integration of Sierra's vortex flow meters into any industrial automation system or application.



The sophisticated on-board flow computer also incorporates AGA-8 algorithms for natural gas measurement to reduce billing and contract disputes. Smart electronics provide access to all measured variables and programming menus, and permit field-configuration directly from the control panel or workstation via RS485, MODBUS HART, BACnet protocols.

Product accuracy is ± 1% of rate for liquids and 1.5% of rate for gases and steam over a 30:1 range.  The Model 240 is hazardous area approved by FM, CSA, and CE.

Unique Product Features
• Volumetric flow monitoring of most gases, liquids and steam
• Rangeable down to Reynold's number of 5000
• In-line sizes from 1/4 " to 8"
• 1% rate accuracy (liquids) or 0.7% for gases over a 30:1 turndown
• Fully field configurable
• Loop powered with 4-20ma output
Digital communications solutions include: BACnet, HART, and Modbus RTU.

Product Related Documents & Downloads

Manuals(1)

  File Title Version Release Date
  240/241 Series Instruction Manual K.1 07/31/2014

Datasheets(1)

  File Title Version Release Date
  InnovaMass 240/241 Series Technical Datasheet J 07/31/2014

Software(1)

  File Title Version Release Date
  240/241 Series Application Product Sizing Software 2.0.2.1 04/16/2013

Digital Communications - BACnet(2)

  File Title Version Release Date
  240/241 Series BACnet Instruction Manual V1 05/02/2013
  240/241 Series BACnet Quick Install Guide V1 05/02/2013

Digital Communications - Modbus RTU(3)

  File Title Version Release Date
  240/241 Series Modbus Instruction Manual V1 05/02/2013
  240/241 Series Modbus Quick Install Guide V1 05/02/2013
  KepserverEx 4.0 Software for Use With MODBUS 4.0 05/29/2014

Digital Communications - HART(4)

  File Title Version Release Date
  240/241 Series HART Instruction Manual V1 05/02/2013
  240/241 Series HART Quick Install Guide V1 05/02/2013
  InnovaMass 240/241 DD Files (Field Communicator) FC_000087 09/15/2014
  InnovaMass 240/241 DD Files (PC Programs) PC_000087 09/15/2014

Certificates(13)

  File Title Version Release Date
  240 Series Gost Certificate 1.0 09/23/2013
  240/241 ATEX Certificate V1.1 03/06/2014
  240/241 Series CE Declaration of Conformity 1.0 05/01/2011
  240/241 Series FM Certificate of Compliance 1.0 05/20/2008
  ISO 9001:2008 1.0 01/22/2013
  ARRA Certificate of Conformity 8/5/14 08/06/2014
  CRN Approval 0F09333.26 Quebec 1.0 04/09/2009
  CRN Approval 0F09333.25 Ontario 1.0 12/29/2008
  CRN Approval 0F09333.24 Manitoba 1.0 11/20/2008
  CRN Approval 0F09333.21 British Columbia 1.0 12/29/2008
  CRN Approval 0F09333.2 Alberta 1.0 12/21/2010
  CRN Approval 0F09333.23 Saskatchewan 1.0 09/09/2009
  CRN Approval 1.0 11/20/2008

Other(5)

  File Title Version Release Date
  Terms and Conditions 1.0 11/01/2010
  Service Brochure 1.0 10/10/2008
  Warranty Statement 1.0 09/01/2010
  Sierra Clean Energy Guide V1 01/28/2011
  Full Line Product Offering V1 05/28/2013
