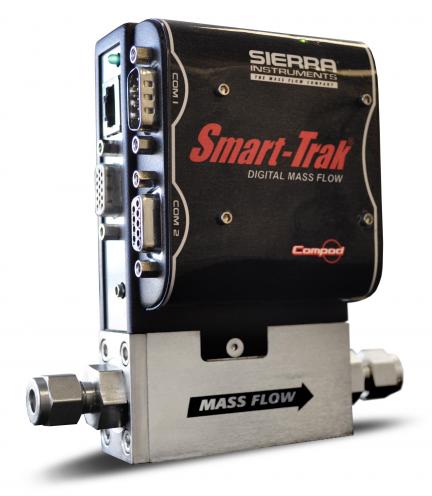

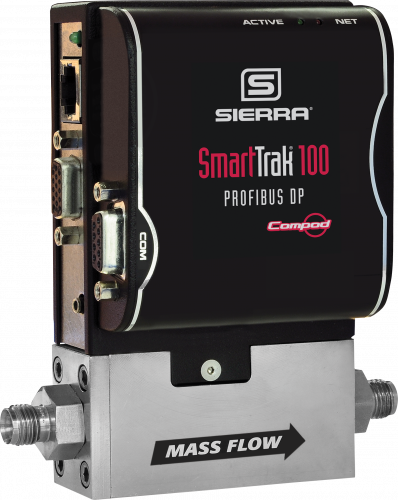

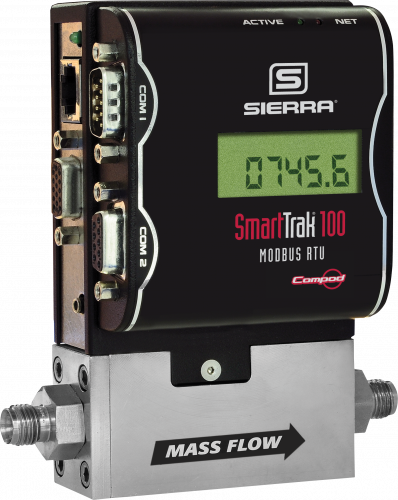

Compodâ„¢ Flow Sensor and Flow Control Valve for SmartTrak 100 Series
Compod Programmable Flow Sensor Control Module, Multi-Drop R
Simplify basic flow sensor control installations with Compod!
With its advanced mass flow sensor capabilities, the Compod™ control valve, coupled with Sierra’s SmartTrak® 100 mass flow meters (MFM’s) or controllers (MFC’s) greatly simplifies air flow control systems and permits networking of multiple instruments using open-source MODBUS RTU protocol. Compod™ also monitors the functionality of the mass flow meter or controller and includes diagnostics, notifying users of valve faults or system upsets. By adding the Compod™ flow sensor control valve to a new or existing SmartTrak® MFM or MFC, end users can take complete control. Two digital outputs and one analog input can be configured by the user for a wide variety of air flow process controls including:
- Gas mixing and blending
- Batch control
- Sensor driven leak testing
- Process monitoring
- Physical Vapor Deposition (Sputtering)
- Pressure monitoring and control
- Gas ratio control
- Internal valve performance monitoring
- Triggering alarms
- Starting or stopping gas flows automatically under user-defined conditions
- Gas flow totalization with adjustable pulse output
- And many more...
|

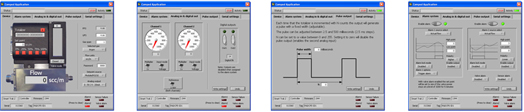

Compod Software Interface Screen Shots: ![]() More Flow Sensor Features:• Controls simple processes without the need for external PLCs or computers • Acts as a vital link in a complex process control network • Monitors the operation of instruments and provides potential problem alerts • Is available with a local LCD Display for local monitoring • Can be used with new instruments or added to existing models With all of the above features, the Compod™ flow valve can perform the same functions as much more complex control systems at a fraction of the cost, so using Compod™ is smart in more ways than one. An internal Compod can also be added inside the industrial enclosure of the Max-Trak® Model 180 to obtain most functions. Users can utilize Sierra’s included flow sensor software or write proprietary software using open-source MODBUS protocol to configure standard functions for the Smart-Trak®. Compod’s two digital output channels and the analog input channel and a configurable pulse output channel can automate gas processes without the need for an external PLC or computer.
|
Product Related Documents & Downloads
Manuals(1) | |||
| File Title | Version | Release Date | |
|---|---|---|---|
| Compod Control Module Instruction Manual | V1 | 05/01/2013 | |
Datasheets(1) | |||
| File Title | Version | Release Date | |
| Compod Programmable Control Module Technical Datasheet | A | 04/16/2013 | |
Guides(1) | |||
| File Title | Version | Release Date | |
| Compod Programmable Control Module Quick Installation Guide | B | 04/16/2013 | |
Software(1) | |||
| File Title | Version | Release Date | |
| Compod Programmable Control Module Product Software | V1.2 | 04/16/2013 | |
Certificates(9) | |||
| File Title | Version | Release Date | |
| ARRA Certificate of Conformity | 9/20/10 | 09/20/2010 | |
| CRN Approval | 1.0 | 11/20/2008 | |
| CRN Approval 0F09333.2 Alberta | 1.0 | 12/21/2010 | |
| CRN Approval 0F09333.21 British Columbia | 1.0 | 12/29/2008 | |
| CRN Approval 0F09333.23 Saskatchewan | 1.0 | 09/09/2009 | |
| CRN Approval 0F09333.24 Manitoba | 1.0 | 11/20/2008 | |
| CRN Approval 0F09333.25 Ontario | 1.0 | 12/29/2008 | |
| CRN Approval 0F09333.26 Quebec | 1.0 | 04/09/2009 | |
| ISO 9001:2008 | 1.0 | 01/22/2013 | |
Other(3) | |||
| File Title | Version | Release Date | |
| Service Brochure | 1.0 | 10/10/2008 | |
| Terms and Conditions | 1.0 | 11/01/2010 | |
| Warranty Statement | 1.0 | 09/01/2010 | |
![]() |
Inside Sierra and it’s Compod with SmartTrak Watch this short video to get quick birds-eye view into Sierra and a “how-it-works” lesson on our Compod which simplifies basic flow control installations to save you money and time. Watch video now. |

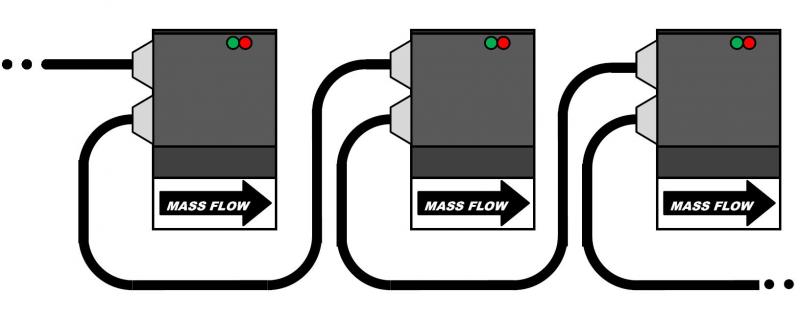

Compod_daisy_chain_tn
