MultiTrak™ Model 670S

Large Duct and Stack High-Performance Multi-Point Mass Flow

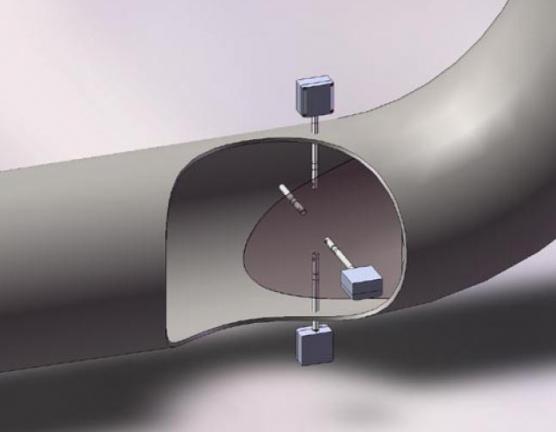

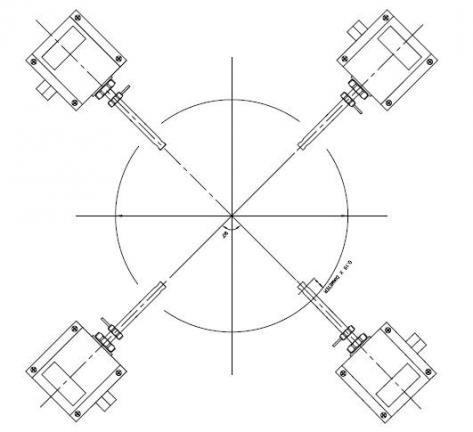

Sierra's MultiTrak™ Model 670S is an advanced state-of-the-art instrument for measuring mass flow rates in very large ducts or stacks that have non-uniform velocity profiles, high turn-down requirements, dirty gas streams, wide temperature ranges and fast velocity and temperature changes. The MultiTrak™ dynamically compensates for changes in the flow profile by using up to four independent mass flow sensing points to measure the instantaneous average gas mass flow velocity. The MultiTrak™ is commonly used in petrochemical refining, coal-fired electric power generation, steel manufacturing and many other industrial processes that face the challenge of accurate and repeatable gas mass flow measurement in very large pipes or ducts.

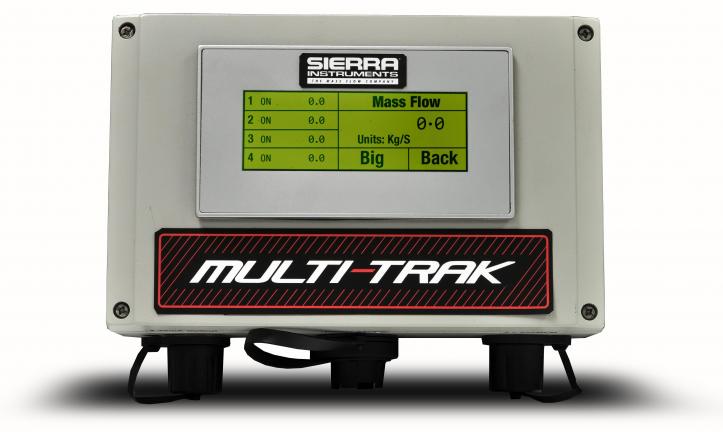

An innovative, versatile and user-friendly microprocessor-based Human Machine Interface (HMI) controls all functions of the MultiTrak™system. The HMI is used to collect, visualize and store flow data, as well as set up the individual sensor points, thus allowing the entire system to be easily configured in the field. The MultiTrak™ HMI integrates the functions of flow measurement, flow-range adjustment, field validation and diagnostics, and displays mass flow rate and totalized flow, as well as other configuration variables. All of this data is easily programmable from the HMI's easy-to-use touch screen.

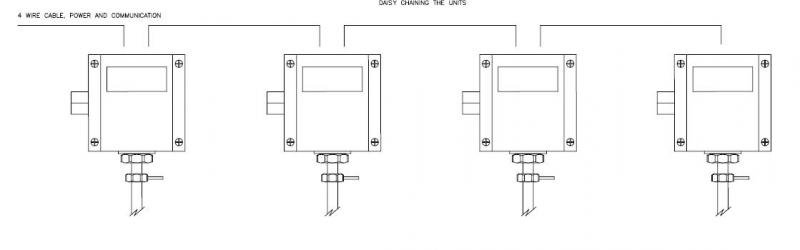

Unlike single probe insertion sensors where each sensor point is on the same insertion probe, each MultiTrak™ sensor point is completely independent of the others, allowing for easy field swap-out or cleaning of individual transmitters.
