Accurate Liquid Flow Detection and Measurement in the Field

Overview

Increase flexibility in the field with Sierra’s InnovaSonic® 210 ultrasonic portable flow meter featuring Bluetooth connectivity. Other liquid flow meters and indicators require keyboards and cabling, making them inefficient in the field. The 210 outperforms other liquid flow meters with transducers by using a Bluetooth-enabled Android tablet PC to control data acquisition and processing.

Users can browse the collected data, perform statistical analysis, display graphs and perform other functions. With its high accuracy, the 210 low-flow liquid flow meter with transducers is ideal for precisely measuring a wide range of liquid flows and temperatures. While principally designed for clean liquids, the meter operates effectively for liquid flow detection with the minimal quantity of air bubbles or suspended solids found in most industrial applications.

For increased field flexibility, the 210 liquid flow meter and indicator provides a powerful and extremely user-friendly programming menu that includes instantaneous flow rate, positive total, negative total, net total, velocity, date & time, and daily flow results. Its 1GB SD memory card promises high-capacity data logging and a rechargeable lithium-ion battery supports continuous operation for a minimum of eight hours. A plug-in spare battery extends this operating time to 24 hours.

Product Benefits

• Accuracy of +/- 0.5% of reading from 1.6 ft./s to 40 ft./s (0.49 m/s to 12 m/s)
• Repeatability of +/-0.15% of reading
• Wide flow range of 1.6 ft./s to 40 ft./s (0.49 m/s to 12 m/s)
• Pipes 1 inch to 200 inches (25 to 5000 mm)
• Clamp-on transducers in magnetic rack
• 16 feet (5 meters) of cabling standard
• Bluetooth connectivity to tablet PC with easy to use menu system (installed on tablet)
• Battery operated for 8 hours without recharge
• 1 GB SD memory card for data logging

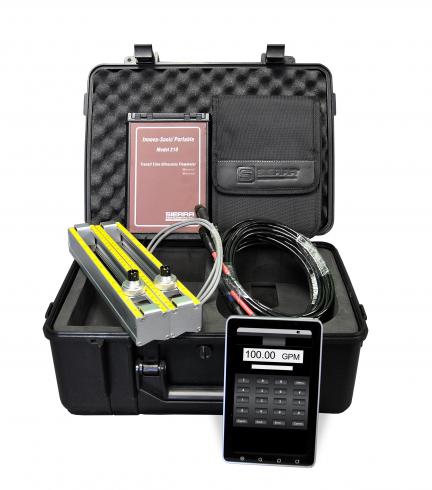

• Pelican-style case with everything needed to make immediate measurement

Applications

With its field flexibility and ability to easily control low-flow liquid data acquisition, the 210 improves the liquid flow measurement and detection process in the following applications:

• Water, sewage (with low particle content) and seawater
• Water supply and drainage water
• Power plants (nuclear power plants, thermal and hydropower plants), heat energy, boiler feed
• Water and energy management systems
• Metallurgy and mining applications (cooling water and acid recovery)
• Petroleum and chemicals
• Food, beverage and pharmaceutical
• Marine operation and maintenance
• water conservation management
• Pulp and paper
• Pipeline leak detection
• Regular inspection, tracking and collection
