Ultra Low-Flow Digital Gas Mass Flow Meters & Controllers

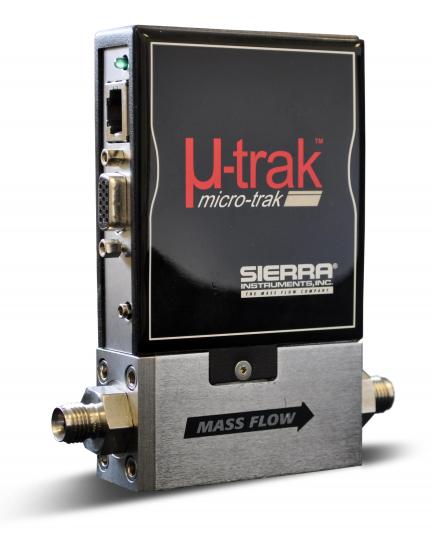

MicroTrak® 101
- Measure and control flow rates down to 0.1 sccm (smlm)
- Increase efficiency with true, digital high-performance
- Navigate easily with large multifunction display interface
- Save time by making adjustments in the field
- Configure up to 10 gasses with one instrument
Overview
As today's science and engineering focuses more and more on micro technology, the requirement to be able to accurately measure and control extremely low gas mass flow rates has become very important.
With advanced sensor technology and a special valve orifice design, the MicroTrak system accurately measures and controls mass flow rates previously thought by scientists to be far too low for repeatable readings.
Discover the Benefits of Mass Flow
For lab researchers and systems integrators/OEMs, the MicroTrak thermal mass flow controller is a true multi-gas digital MFC designed to deliver smooth, stable, accurate, and repeatable gas mass flow control. Unaffected by upstream gas temperature and pressure fluctuations, micro flow control is direct and unequivocal:
- Designed for low flow ranges under 4 sccm (smlm), with a minimum controllable mass flow rate of 0.1 sccm (smlm)
- Provides accurate and reliable micro mass flow control of clean gases, including corrosives and toxics
- Available with an innovative and user-friendly Pilot Module interface
MicroTrak's NIST traceable accuracy is backed by our 10-point, primary standard calibration over the entire flow range. Our low-pressure digital flow meter offers high accuracy for this tough application. The 101 flow controller has a strong and flexible valve tuning to assure best speed and reliability. Custom valve orifice sizing yields full-range stability.
Pilot Module: With the remote or face-mounted pilot module display/interface, view and change every aspect of MicroTrak at any time with the push of a button. Simply choose a gas from the menu and it's ready to go, without losing any accuracy. You can also adjust engineering units, flow range, and set zero, span and full scale independently for each gas.
DIY Calibration: If you prefer to calibrate your own mass flow meters and controllers in-house, Sierra provides all necessary software and training and even the flow calibration standards products required for the job.
Software & Digital Communications: Free user software and a variety of communications protocols like Modbus, Profibus and Foundation Fieldbus, make every low flow sensor easy to integrate into your digital communications network.
Special Pricing: We work with you to meet budget requirements and cost targets. Ask about OEM volume discounts.
The Thermal Advantage: Thermal mass flow technology is an industry standard for mass flow control of gases because it measures micro flow directly, at the molecular level. In essence, our meters count and control every gas molecule flowing through the instrument to achieve unmatched precision.
Product Benefits
|
|
Specifications
|
|
Documents & Downloads
Datasheets(3) | |||
| File Title | Version | Release Date | |
|---|---|---|---|
| MicroTrak 101 Technical Datasheet | G | 07/07/2022 | |
| SmartTrak 100 Mass Flow Meters & Controllers Application Datasheet | V13 | 06/25/2020 | |
SmartTrak Series Brochure | V1 | 10/11/2018 | |
Manuals(2) | |||
| File Title | Version | Release Date | |
| SmarTrak Serie 100 Betriebshandbuch Massedurchflussmesser (German) | H.2 | 12/04/2015 | |
SmartTrak 100 Series Instruction Manual | W | 07/07/2022 | |
Guides(2) | |||
| File Title | Version | Release Date | |
SmartTrak 100 Quick Install Guide | E | 11/22/2019 | |
| SmartTrak 100 Technical Resource Power Supply & Cabling Guide | B | 12/18/2014 | |
Software(2) | |||
| File Title | Version | Release Date | |
SmartTrak 100 Basic Commands | V1F | 11/12/2019 | |
| SmartTrak 100 Series Software | v2.52 | 05/08/2013 | |
Digital Communications - Flow Meter Digicom - Modbus RTU(3) | |||
| File Title | Version | Release Date | |
| SmartTrak 100 Modbus Instruction Manual | V1 | 05/02/2013 | |
| SmartTrak 100 Modbus Quick Install Guide | V1 | 05/02/2013 | |
| KepserverEx 4.0 Software for Use With MODBUS | 4.0 | 05/29/2014 | |
Digital Communications - Foundation Fieldbus(1) | |||
| File Title | Version | Release Date | |
| Fieldbus Device Description Files | 4.0 | 06/26/2018 | |
Certificates(10) | |||
| File Title | Version | Release Date | |
CE Declaration of Conformity-SmartTrak 100 Series | 3.0 | 12/06/2017 | |
CRN Approval Ontario | 2.0 | 09/20/2019 | |
CRN Approval Saskatchewan | 2.0 | 09/19/2019 | |
| ARRA Certificate of Conformity | 11/3/17 | 11/03/2017 | |
CRN Approval British Columbia | 2.0 | 09/20/2019 | |
CRN Approval Quebec | 2.0 | 09/20/2019 | |
| CRN Approval Manitoba | 2.0 | 09/20/2019 | |
CRN Approval | 2.0 | 09/20/2019 | |
| ISO 9001:2015 | 2022 | 01/10/2022 | |
RoHS 3, REACH, and WEEE Compliance | 2.0 | 09/20/2021 | |
FAQ - Frequently Asked Questions(1) | |||
| File Title | Version | Release Date | |
| Solutions For Valve Oscillation | JRO 3-2014 | 04/24/2014 | |
Additional Documentation(6) | |||
| File Title | Version | Release Date | |
| Warranty Statement | 2.0 | 04/01/2015 | |
| Service Brochure | 2.0 | 04/06/2015 | |
| Full Line Catalog - German Version | V1 | 08/07/2017 | |
| Sierra Clean Energy Guide | V1 | 01/28/2011 | |
| Terms and Conditions | 1.0 | 11/01/2010 | |
Full Line Product Offering | V2 | 06/10/2022 | |
